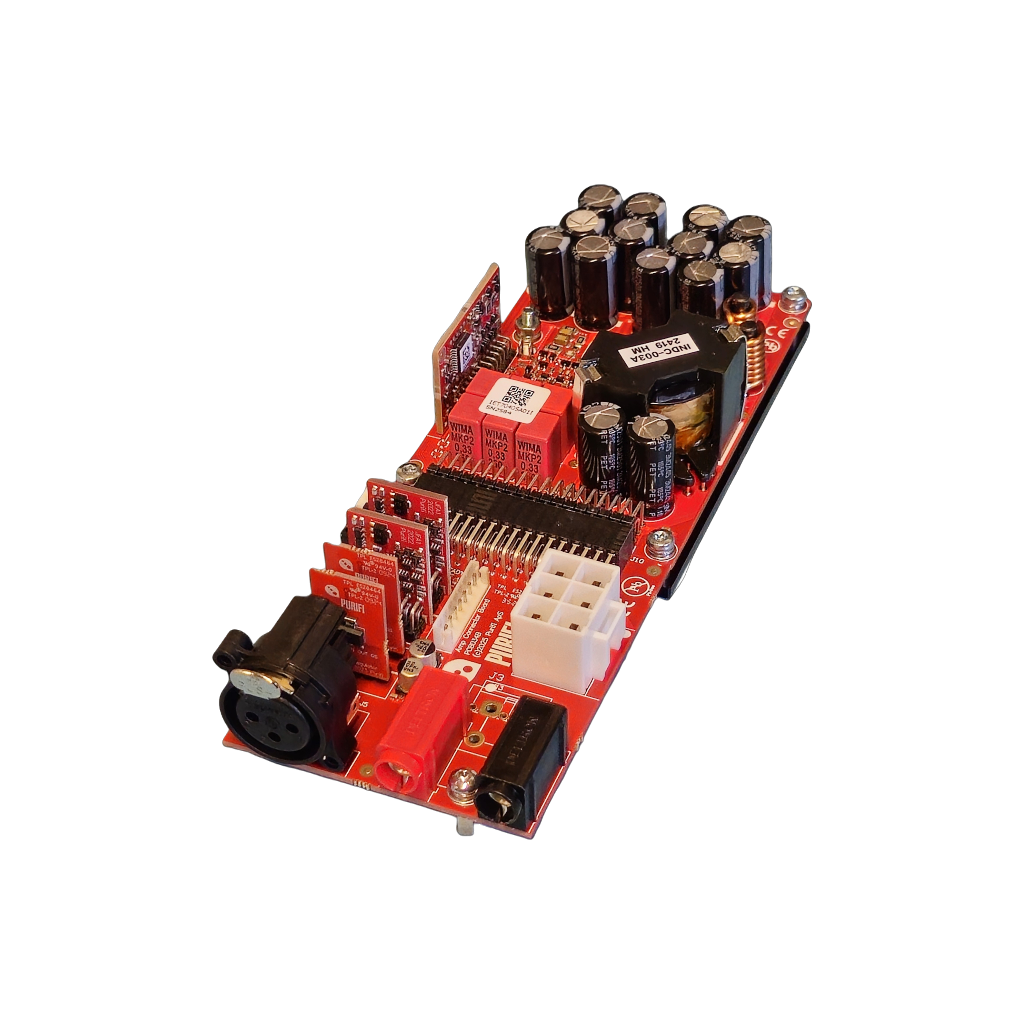

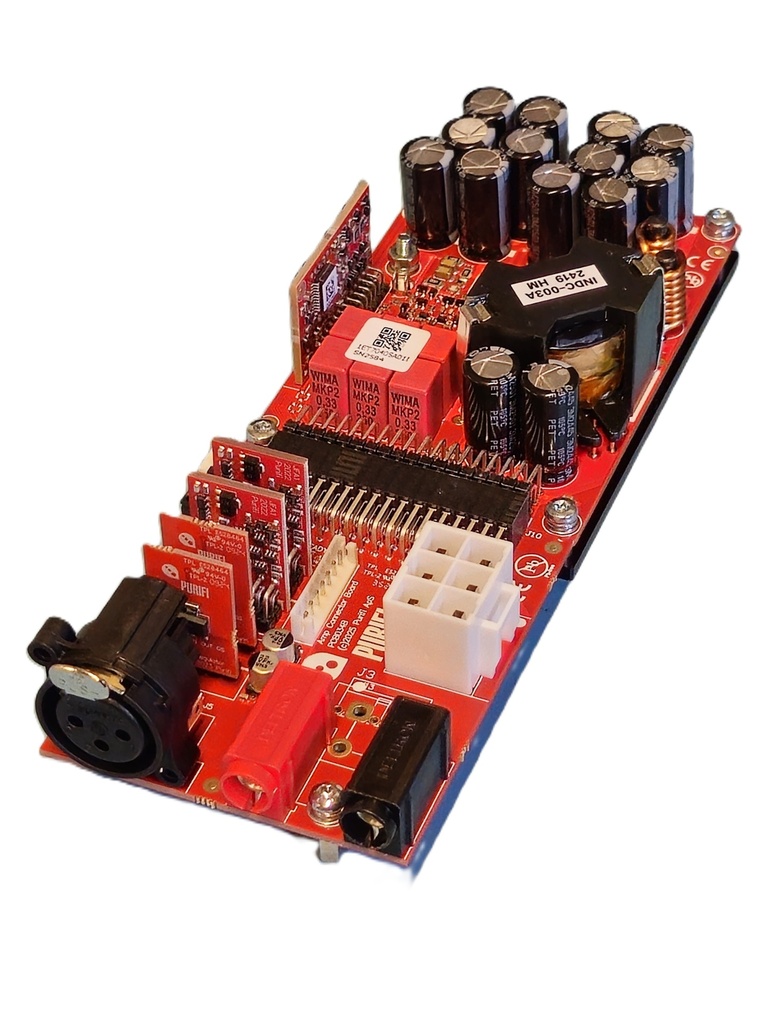

EVAL10 Deluxe Mono 1ET7040SA Eval Kit

https://purifi-audio.com/web/image/product.template/2994/image_1920?unique=984780f

DKK 3,375.00 3375.0 DKK DKK 3,375.00 VAT Excluded

DKK 3,375.00 VAT Excluded

Not Available For Sale

  • Channels
  • Amplifier Configuration
  • Analog Inputs
  • Speaker Outputs
  • Output Power
  • Supply Voltage
  • Length
  • Width
  • Height
  • Weight

This combination does not exist.

Contact Us

NOTE: VAT amount will vary based on ship-to country
Payment fees (e.g. Stripe fees) are not refundable
Terms and Conditions
Shipping within 7 days

Description

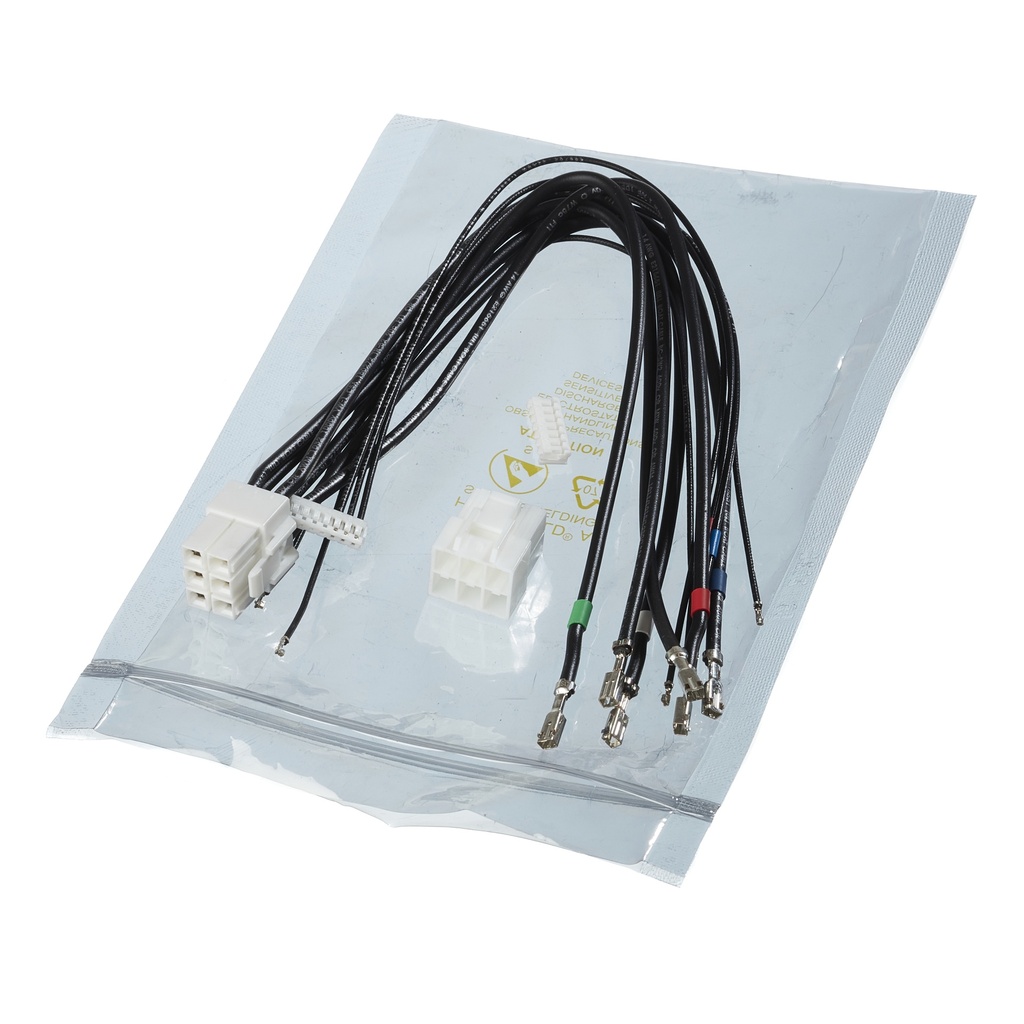

EVAL10 is an evaluation kit consisting of a 1ET7040SA amplifier modules, a mono front-end board FE07 and a Cable set.
EVAL10 is very suitable for integration in DIY constructions.

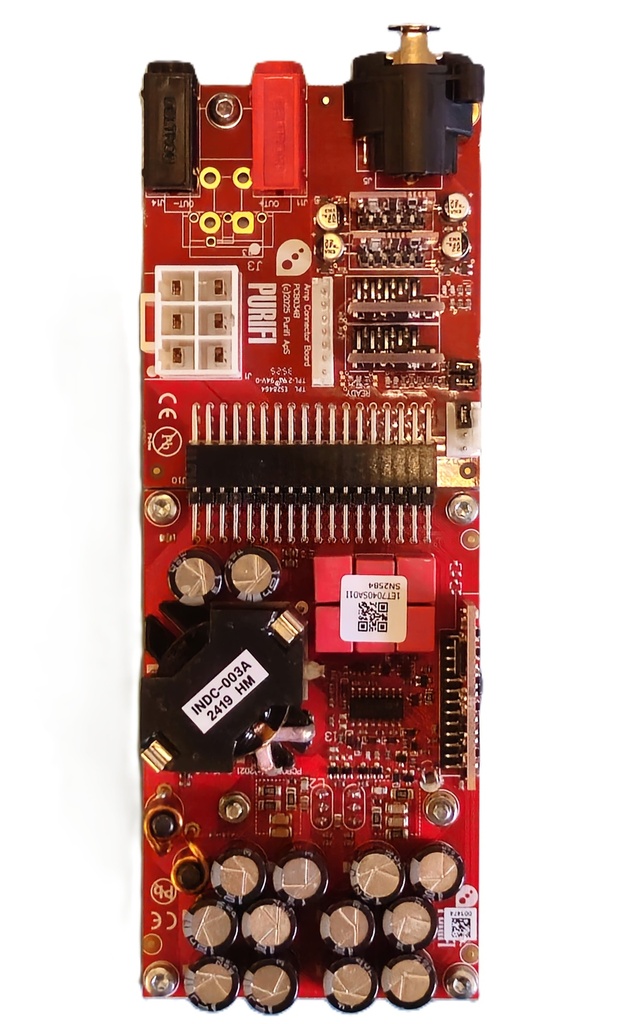

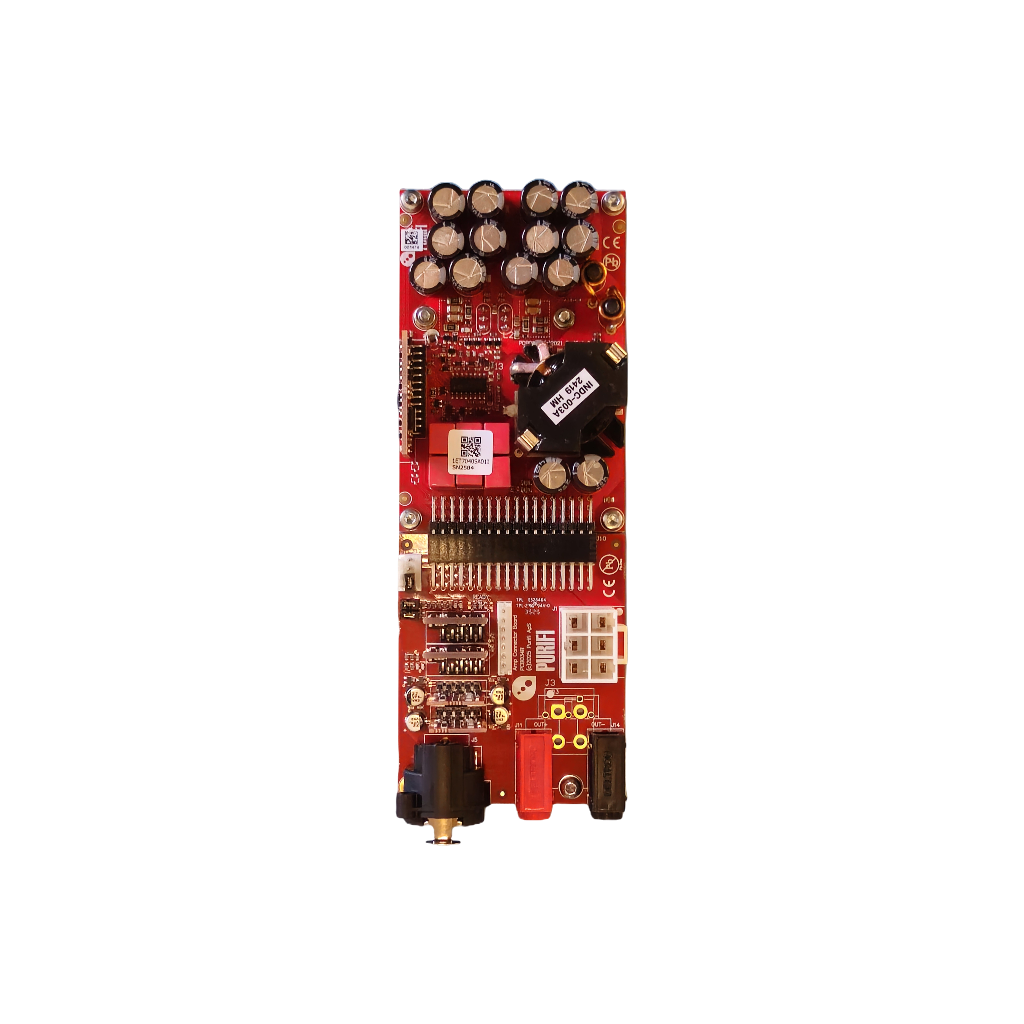

The front-end FE07 is designed for easy testing of the 1ET7040SA and provide all connectivity and control required to operate the amplifier modules:

  • Balanced analog input connector (XLR),
  • Banana-plug speaker connector and solder pads for extra speaker connector, like a SpeakON
  • Connector for enabling/disabling operation,
  • Connecters for a (shared) power supply
  • Ultra Low Noise and THD Pre-gain stage w/ four gain settings using our FET-input discrete OPAMP
    - see our blog post:    Discrete Op Amps: When and Why It Actually Matters
  • Ultra Low Noise Linear Voltage regulators for OPAMPs
  • Status LED’s,
  • Various pin headers for accessing e.g, I2C and status information.

Refer to the  1ET7040SA  Data Sheet for all specifications.
It is recommended to mount EVAL11 on a heatsink, e.g., an adequately design aluminum chassis.

NOTE: 1ET7040SA has very low idle losses and high overall efficiency, however, adequate cooling is still essential for sustained power delivery. Careful considerations must be given to design of the thermal system in order to achieve desired system-level output power specifications. Given proper cooling the 1ET7040SA amplifier module can easily be capable of very high continuous power delivery and the module is specifically designed with the utmost robustness and reliability as fundamental properties. Most frequently it is the system power supply that becomes the limiting factor in a application incorporating the 1ET7040SA module(s).

Specifications

Channels 1
Amplifier Configuration Single Ended
Analog Inputs Balanced (XLR)
Speaker Outputs Banana-plug & Solder point
Output Power 500W @ 1% THD, 4Ω
Supply Voltage ±32V to ±70V (VP), 15V (VDR), ±18V (VUNREG)
Length 157mm
Width 63mm
Height 39mm
Weight 195g
