OEM Transducers
The PURIFI OEM transducers offers
- All-black magnet systems
- More variants and options for custom designed version
- Available with PP-coated fiber paper or aluminum cone, both offering a beautiful black finish with high enviromental protection and UV stability
- Sold only in cost-saving bulk containers
- Designed and manufactured in Denmark
Please contact us for more info!
PURIFI Transducer Naming Decoder
Please see below naming decoder with PTT6.5X04-NLA-10 as example:
- PTT: Purifi Transducer Technology
- 6.5: size in inches
- X= eXtended woofer;
W=Woofer;
S=Subwoofer;
M=Midrange;
T=Tweeter - 04=4ohm;
08=8ohm and so on..
- - N=Neutral Surround Series
- L=PP coated paper/fiber cone;
F=paper/fiber cone;
A=Alu Cone;
other letters for other cone materials - A= sequential numbering (letter) for the motor design topology (no decoding scheme)
- - 10= sequential numbering for version of the driver (no decoding scheme)
PTT4.0X04-NLC-02
- PP Coated Fiber Paper Mix
- 38 Hz Resonance Frequency
- ±8.8 mm linear excursion
- 84.0 dB SPL @ 2.83 Vrms
PTT4.0X04-NAC-04
- Black Anodized Aluminum
- 40 Hz Resonance Frequency
- ±8.8 mm linear excursion
- 83.9 dB SPL @ 2.83 Vrms
PTT4.0X08-NLC-02
- PP Coated Fiber Paper Mix
- 42 Hz Resonance Frequency
- ±8.8 mm linear excursion
- 81.9 dB SPL @ 2.83 Vrms
PTT4.0X08-NAC-04
- Black Anodized Aluminum
- 43 Hz Resonance Frequency
- ±8.8 mm linear excursion
- 81.8 dB SPL @ 2.83 Vrms
PURIFI OEM Catalog List:
Active transducers:
Product: |
Size: |
Type: |
Cone material: |
Downloads 4ohm: |
Downloads 8ohm: |
| PTT4.0M04-NAC-04 PTT4.0M08-NAC-04 |
4.0 in | Midrange | Black Anodized Aluminum | |
|
|
PTT4.0M04-NLC-02 PTT4.0M08-NLC-02 |
4.0 in | Midrange | PP Coated Fiber Paper Mix |
|
|
|
PTT4.0X04-NAC-04 PTT4.0X08-NAC-04 |
4.0 in | Extended Woofer |
Black Anodized Aluminum
|
|
|
| PTT4.0X04-NLC-02 PTT4.0X08-NLC-02 |
4.0 in | Extended Woofer | PP Coated Fiber Paper Mix | PTT4.0X08-NLC-02 - Data Sheet | |

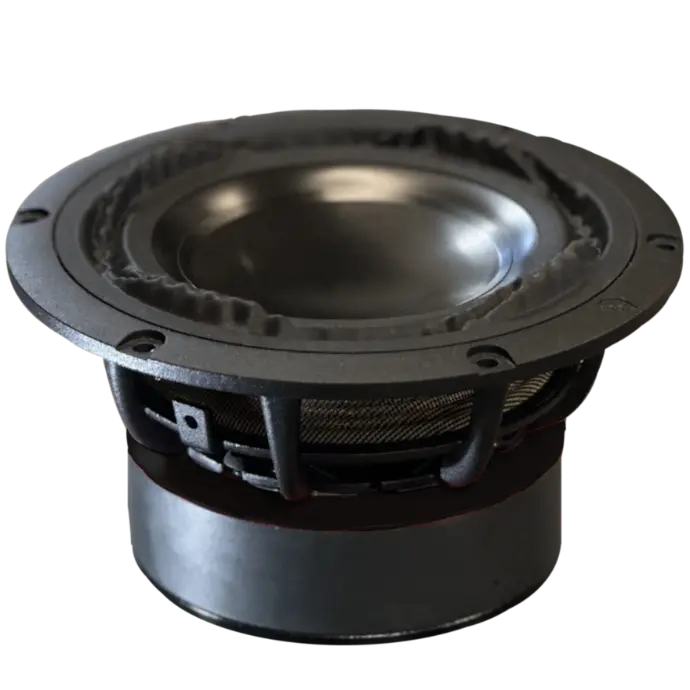

| PTT5.25M04-NFA-02 PTT5.25M08-NFA-02 |
5.25 in | Midrange | Fiber Paper Mix | Pending | |
| PTT5.25X04-NFA-02 PTT5.25X08-NFA-02 |
5.25 in | Extended Woofer | Fiber Paper Mix | ||
| PTT6.5M04-NAA-07 PTT6.5M08-NAA-07 |
6.5 in | Midrange | Black Anodized Aluminum | PTT6.5M04-NAA-07 Data Sheet PTT6.5M04-NAA-07 FRD |
PTT6.5M08-NAA-07 Data Sheet PTT6.5M08-NAA-07 FRD |
| PTT6.5M04-NLA-02 PTT6.5M08-NLA-02 |
6.5 in | Midrange | PP Coated Fiber Paper Mix | ||
| PTT6.5W04-NAA-07 PTT6.5W08-NAA-07 |
6.5 in | Woofer | Black Anodized Aluminum | PTT6.5W04-NAA-07 Data Sheet PTT6.5W04-NAA-07 FRD |
|
| PTT6.5W04-NLA-10 PTT6.5W08-NLA-10 |
6.5 in | Woofer | PP Coated Fiber Paper Mix | ||

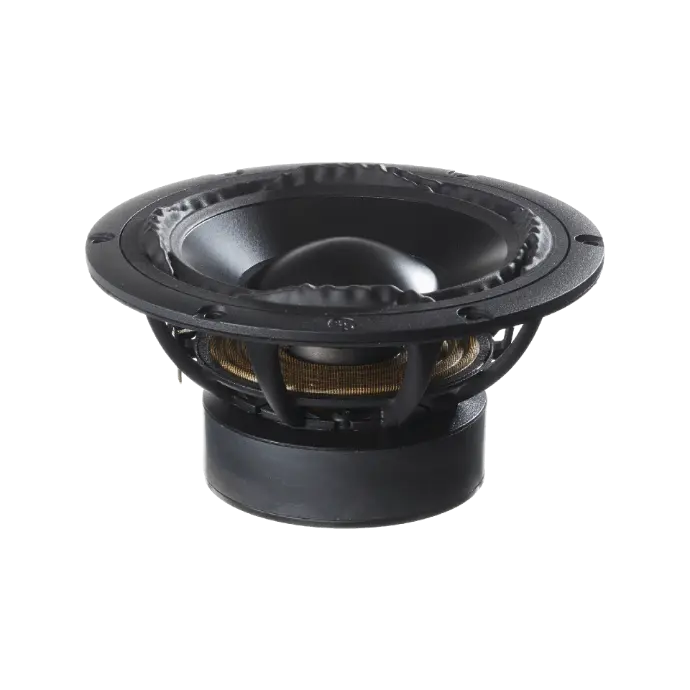

| PTT6.5X04-NAA-07 PTT6.5X08-NAA-07 |
6.5 in | Extended Woofer | Black Anodized Aluminum | ||

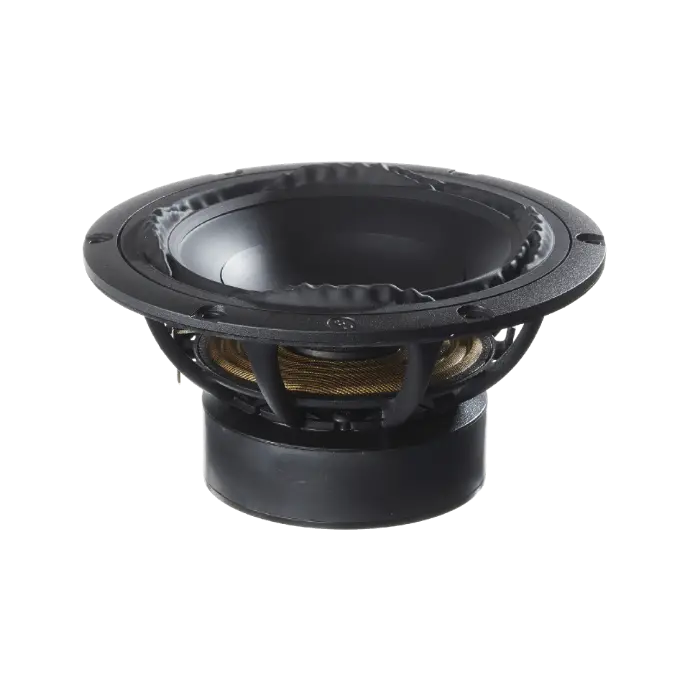

| PTT6.5X04-NLA-10 PTT6.5X08-NLA-10 |
6.5 in | Extended Woofer | PP Coated Fiber Paper Mix | PTT6.5X04-NLA-10 Data Sheet |
|
| PTT8.0X04-NAB-02 PTT8.0X08-NAB-02 |
8.0 in | Extended Woofer | Black Anodized Aluminum | ||
PTT10.0X04-NAB-02 | 10.0 in | Extended Woofer | Black Anodized Aluminum |
Passive radiators:
Product: |
Size: |
Cone material: |
Data sheet: |
| PTT4.0PR-NA2-02 | 4.0 in |
Black Anodized Aluminum
|
|
| PTT4.0PR-NL2-01 | 4.0 in |
PP Coated Fiber Paper Mix
|
|
| PTT5.25PR-NF2-01 | 5.25 in | Fiber Paper Mix | |
| PTT6.5PR-NA2-03 | 6.5 in | Black Anodized Aluminum | |
| PTT6.5PR-NA2-05 | 6.5 in | Black Anodized Aluminum |
|
| PTT6.5PR-NL2-02 | 6.5 in | PP Coated Fiber Paper Mix | |
| PTT6.5PR-NL2-04 | 6.5 in | PP Coated Fiber Paper Mix | |
| PTT8.0PR-NA2-01 | 8.0 in | Black Anodized Aluminum | PTT8.0PR-NA2-01 - Data Sheet |
| PTT10.0PR-NA2-01 | 10.0 in | Black Anodized Aluminum |
