  2. EVAL9 Deluxe Stereo 1ET6525SA Eval Kit

EVAL9 Deluxe Stereo 1ET6525SA Eval Kit

https://purifi-audio.com/web/image/product.template/2993/image_1920?unique=bb6df82

DKK 6,275.00 6275.0 DKK DKK 6,275.00 VAT Excluded

DKK 6,275.00 VAT Excluded

Not Available For Sale

  • Channels
  • Amplifier Configuration
  • Analog Inputs
  • Speaker Outputs
  • Output Power
  • Supply Voltage
  • Length
  • Width
  • Height
  • Weight

This combination does not exist.

Contact Us

NOTE: VAT amount will vary based on ship-to country
Payment fees (e.g. Stripe fees) are not refundable
Terms and Conditions
Shipping within 7 days

Description

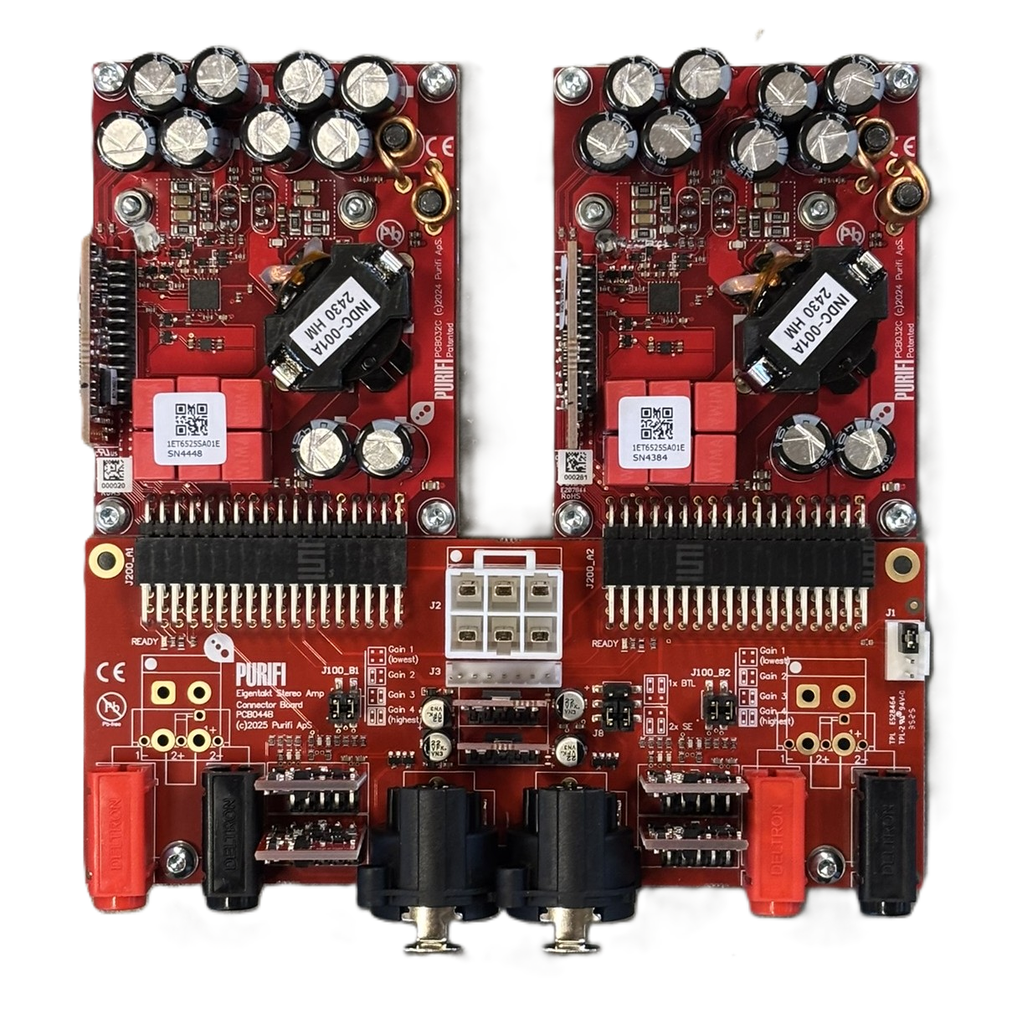

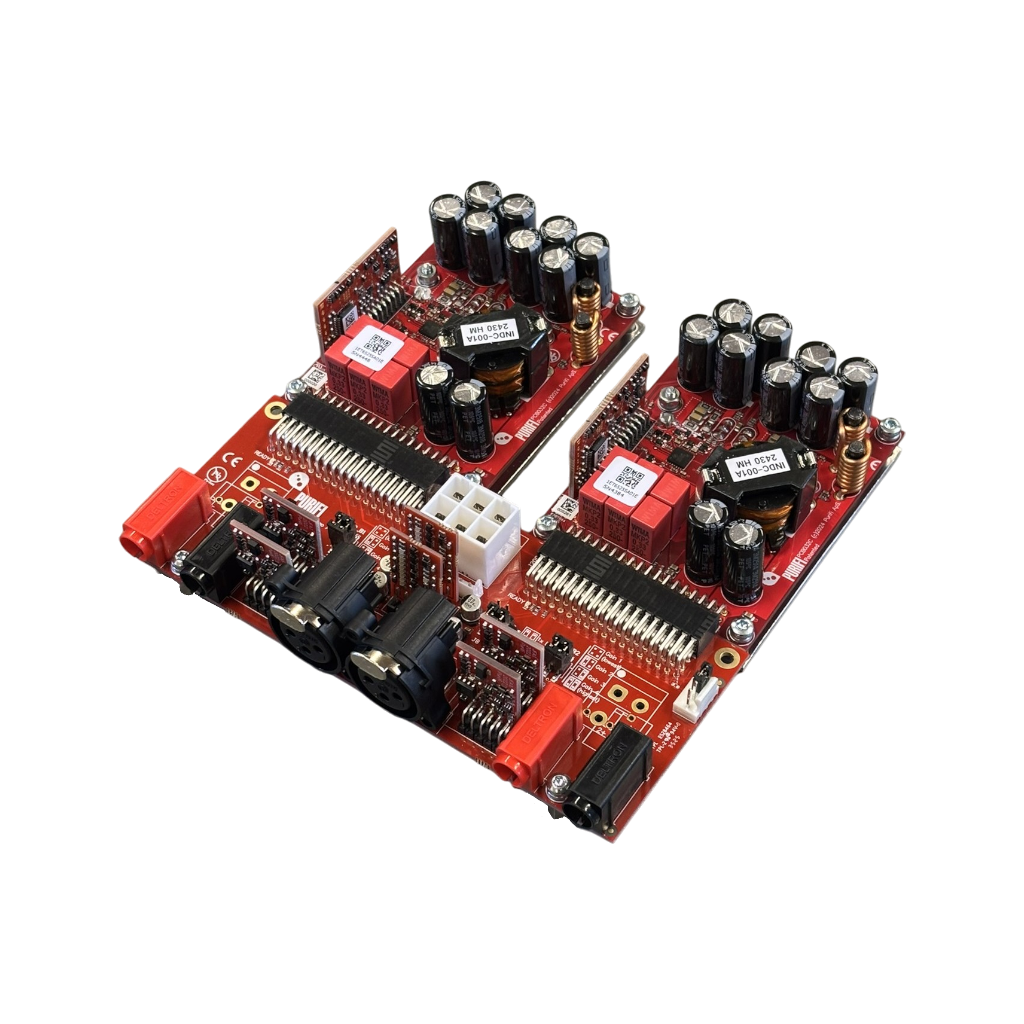

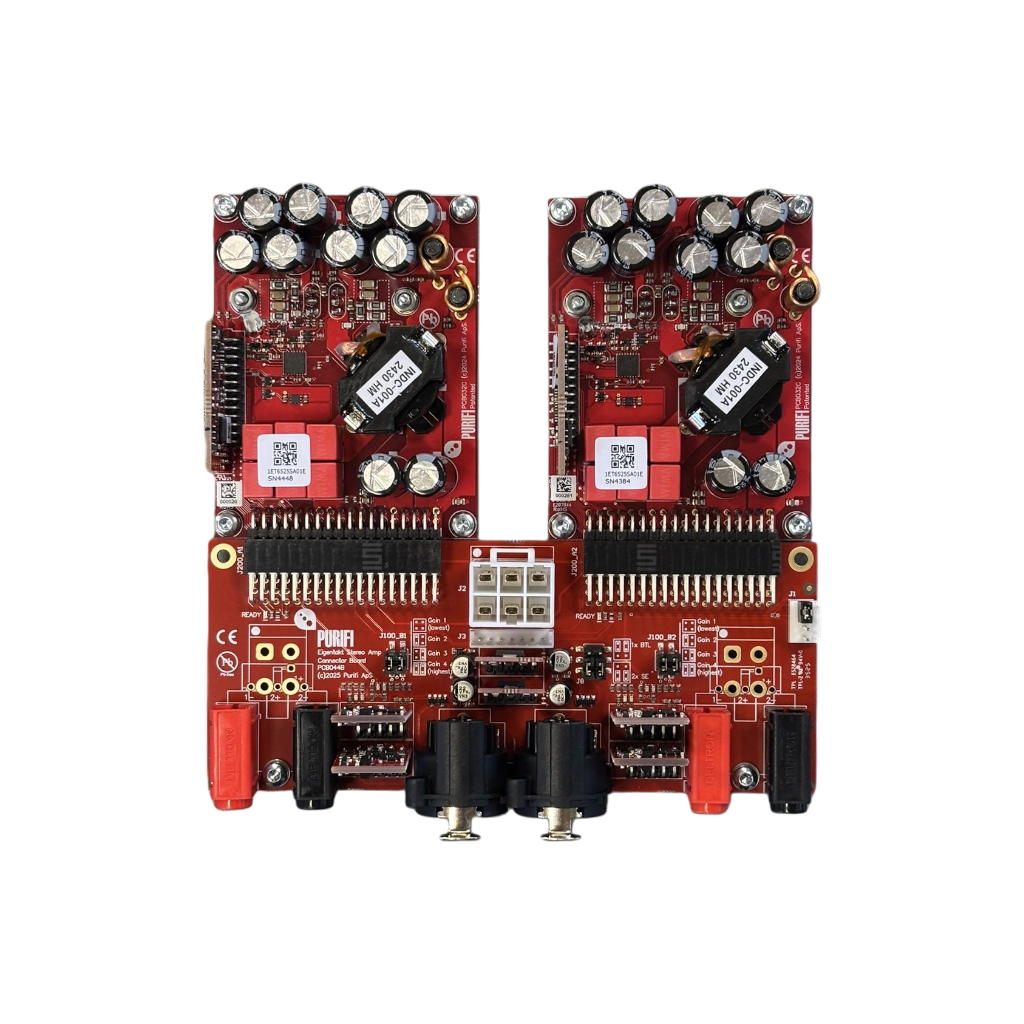

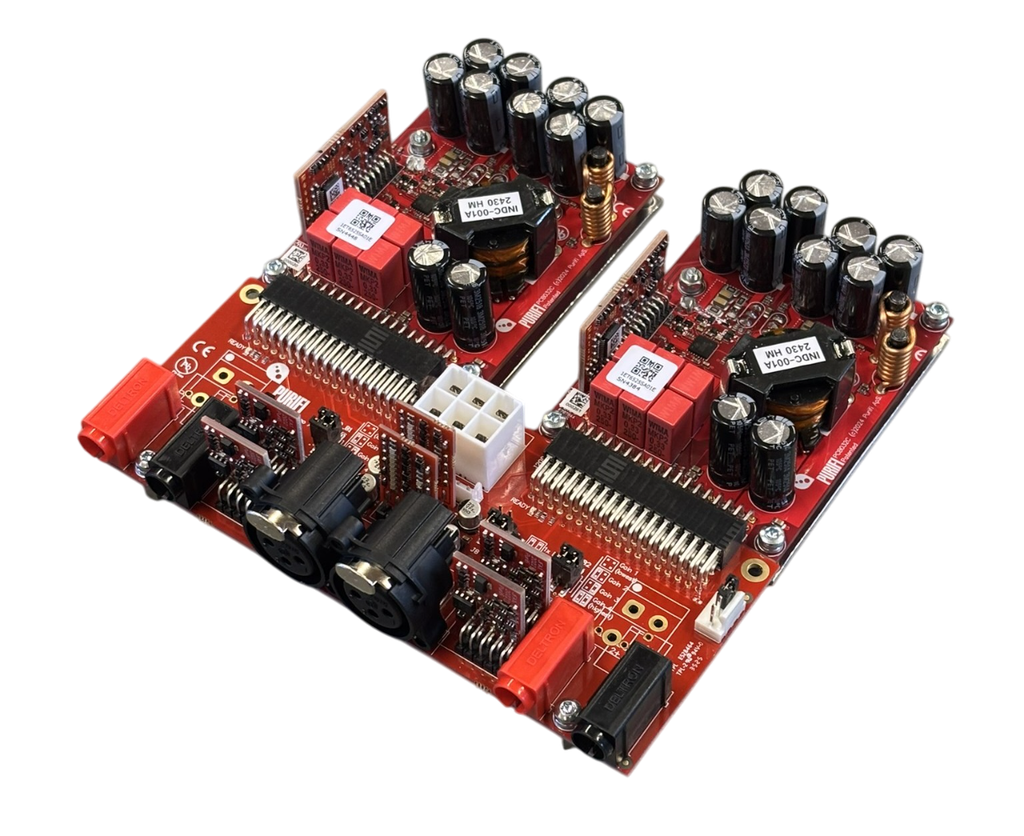

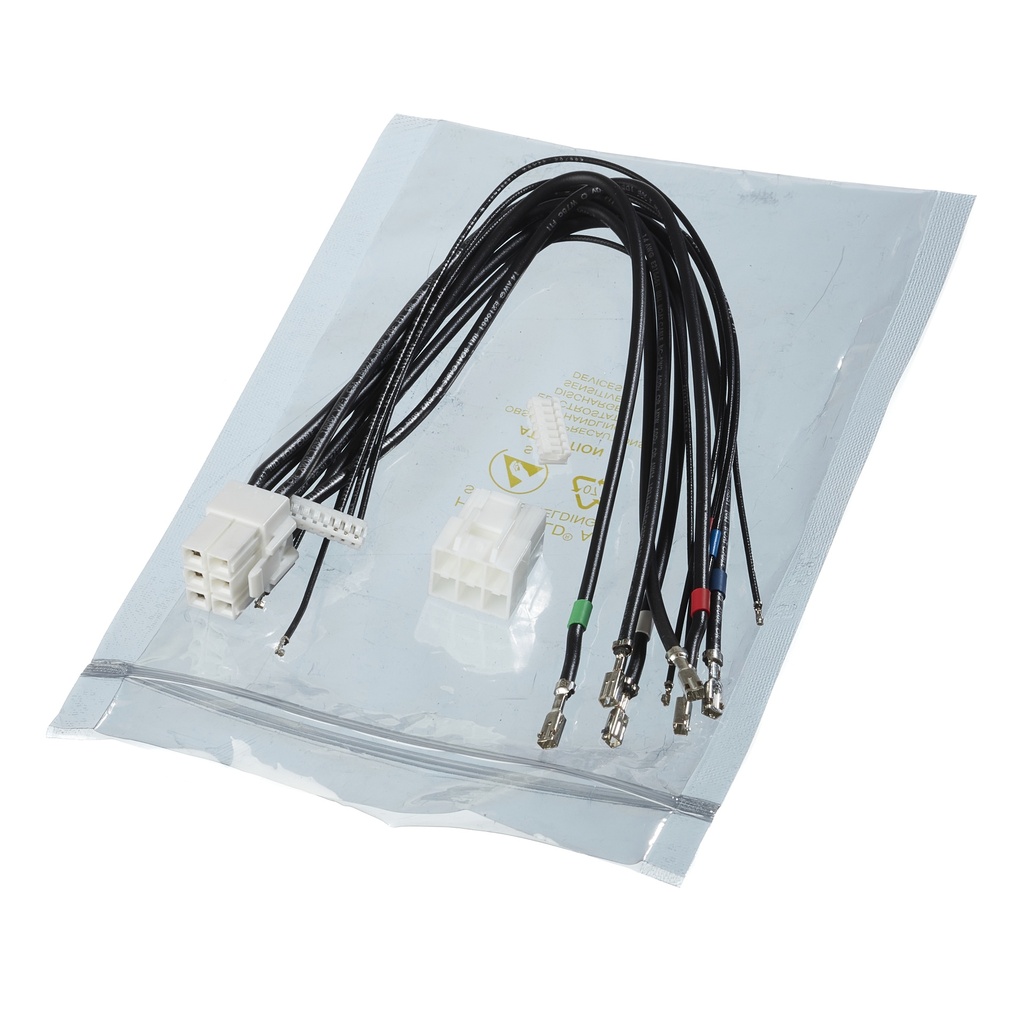

 Designed to be suitable for integration in DIY constructions, the EVAL9 is an evaluation kit consisting of two 1ET6525SA amplifier modules, a stereo front-end board FE08 and a Cable set.

Optimized for easy testing of the 1ET6525SA, the front-end FE08 provides all the necessary connectivity and control features to easily operate the amplifier modules :

  • Balanced analog inputs connectors (XLR),
  • Banana-plug speaker connectors and solder pads for extra speaker connectors, like a SpeakON
  • Connector for enabling/disabling operation,
  • Connecters for a (shared) power supply
  • Ultra Low Noise and THD Pre-gain stage w/ four gain settings using our FET-input discrete OPAMP
    - see our blog post:    Discrete Op Amps: When and Why It Actually Matters
  • Ultra Low Noise Linear Voltage regulators for OPAMPs,
  • Pin header for connecting the 1ET6525SA module in BTL- mode
  • Status LED’s,
  • Various pin headers for accessing e.g, I2C and status information.

Refer to the  1ET6525SA  Data Sheet for all specifications.
It is recommended to mount EVAL11 on a heatsink, e.g., an adequately design aluminum chassis.

NOTE: 1ET6525SA has very low idle losses and high overall efficiency, however, adequate cooling is still essential for sustained power delivery. Careful considerations must be given to design of the thermal system in order to achieve desired system-level output power specifications. Given proper cooling the 1ET6525SA amplifier module can easily be capable of very high continuous power delivery and the module is specifically designed with the utmost robustness and reliability as fundamental properties. Most frequently it is the system power supply that becomes the limiting factor in a application incorporating the 1ET6525SA module(s).

Specifications

Channels 2
Amplifier Configuration Single Ended
Analog Inputs Balanced (XLR)
Speaker Outputs Banana-plug & Solder point
Output Power 450W @ 1% THD, 4Ω
Supply Voltage ±25V to ±65V (VP) 15V (VDR) ±18V (VUNREG)
Length 146mm
Width 142mm
Height 36mm
Weight 373g
