EVAL5 Mono 1ET9040BA Deluxe Eval Kit

https://purifi-audio.com/web/image/product.template/2561/image_1920?unique=240f151

DKK 6,210.00 6210.0 DKK DKK 6,210.00 VAT Excluded

DKK 6,210.00 VAT Excluded

Not Available For Sale

  • Channels
  • Amplifier Configuration
  • Speaker Outputs
  • Output Power
  • Supply Voltage
  • Analog Inputs
  • Length
  • Width
  • Height
  • Weight

This combination does not exist.

Description

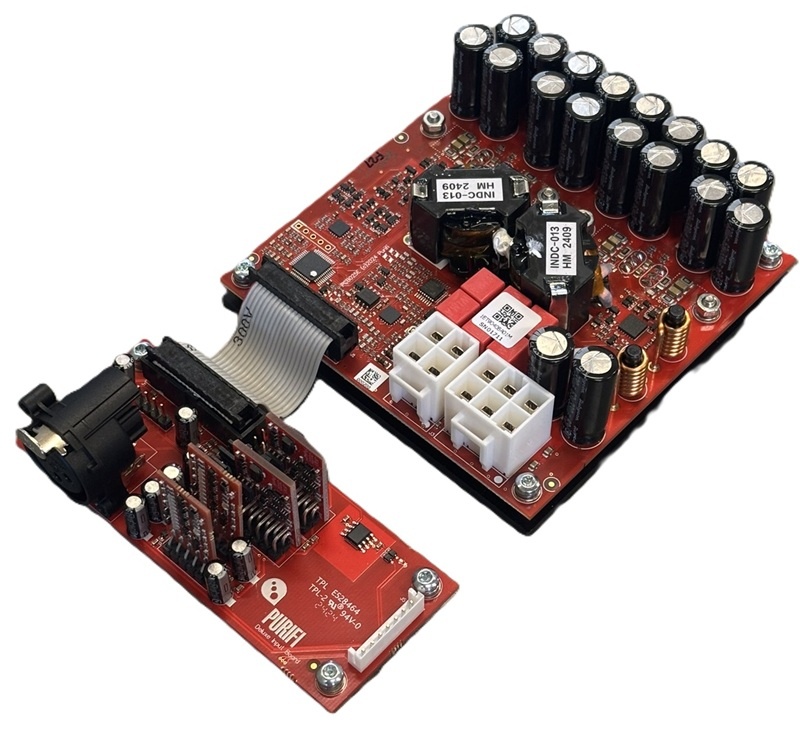

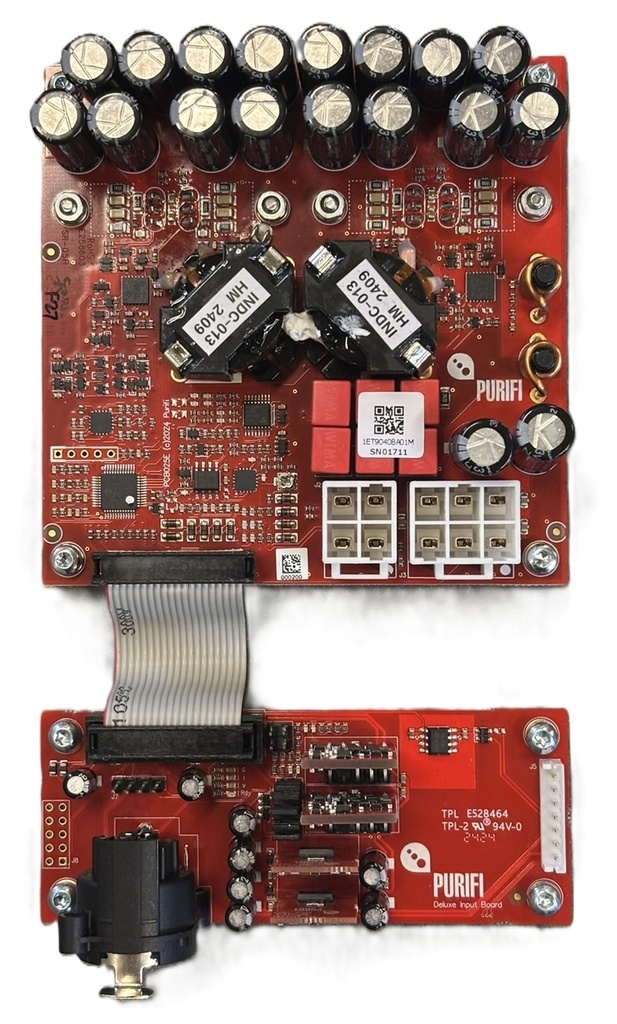

EVAL5 is an evaluation kit consisting of one amplifier module (1ET9040BA), a enhanced mono front-end board (FE05) and a cable set.
EVAL5 is very suitable for integration in DIY constructions.
The EVAL5 is designed for easy testing of the 1ET9040BA and provide all connectivity and control required to operate the amplifier module:

  • FE05:
    • Balanced analog input connector (XLR),
    • Discrete Ultra Low Noise and distortion Pre-gain stage w/ selectable gain and bypass option (jumpers),
      Total system gain options of: 13.5dB, 20dB, 23dB, 26dB & 27dB
    • Pin header for enabling/disabling operation,
    • Discrete low noise high PSRR Voltage regulators for OPAMPs,
    • Status LED’s,
    • Connecter for auxiliary power supply,
  • 1ET9040BA:
    • Speaker connector,
    • High Power Supply connector,
  • Cable Set
    • Flat ribbon cable
    • Low Power Supply cable
    • 6-pin High Power Supply cable
    • 4-pin Speaker cable

Refer to the 1ET9040BA Data Sheet for all specifications.
It is recommended to mount EVAL5 on a heatsink, e.g., an adequately design aluminum chassis.

NOTE: 1ET9040BA has very low idle losses and high overall efficiency, however, adequate cooling is still essential for sustained power delivery. Careful considerations must be given to design of the thermal system in order to achieve desired system-level output power specifications. Given proper cooling the 1ET9040BA amplifier module can easily be capable of very high continuous power delivery and the module is specifically designed with the utmost robustness and reliability as fundamental properties. Most frequently it is the system power supply that becomes the limiting factor in a application incorporating the 1ET9040BA module(s).

Specifications

Channels 1
Amplifier Configuration Bridged Output Stage (BTL)
Speaker Outputs Connector
Output Power 750W @ 0.1% THD, 4Ω
Supply Voltage ±30V to ±48V DC
Analog Inputs Balanced (XLR)
Length 150mm
Width 100mm
Height 39mm
Weight 340g
