EVAL2 Mono 1ET400A Evaluation Kit

https://purifi-audio.com/web/image/product.template/1611/image_1920?unique=ee9f2d2

DKK 2,925.00 2925.0 DKK DKK 2,925.00

DKK 2,925.00

  • Channels
  • Amplifier Configuration
  • Analog Inputs
  • Speaker Outputs
  • Output Power
  • Supply Voltage
  • Length
  • Width
  • Height
  • Weight

This combination does not exist.

Terms and Conditions
Shipping within 7 days


User Guide:

Description

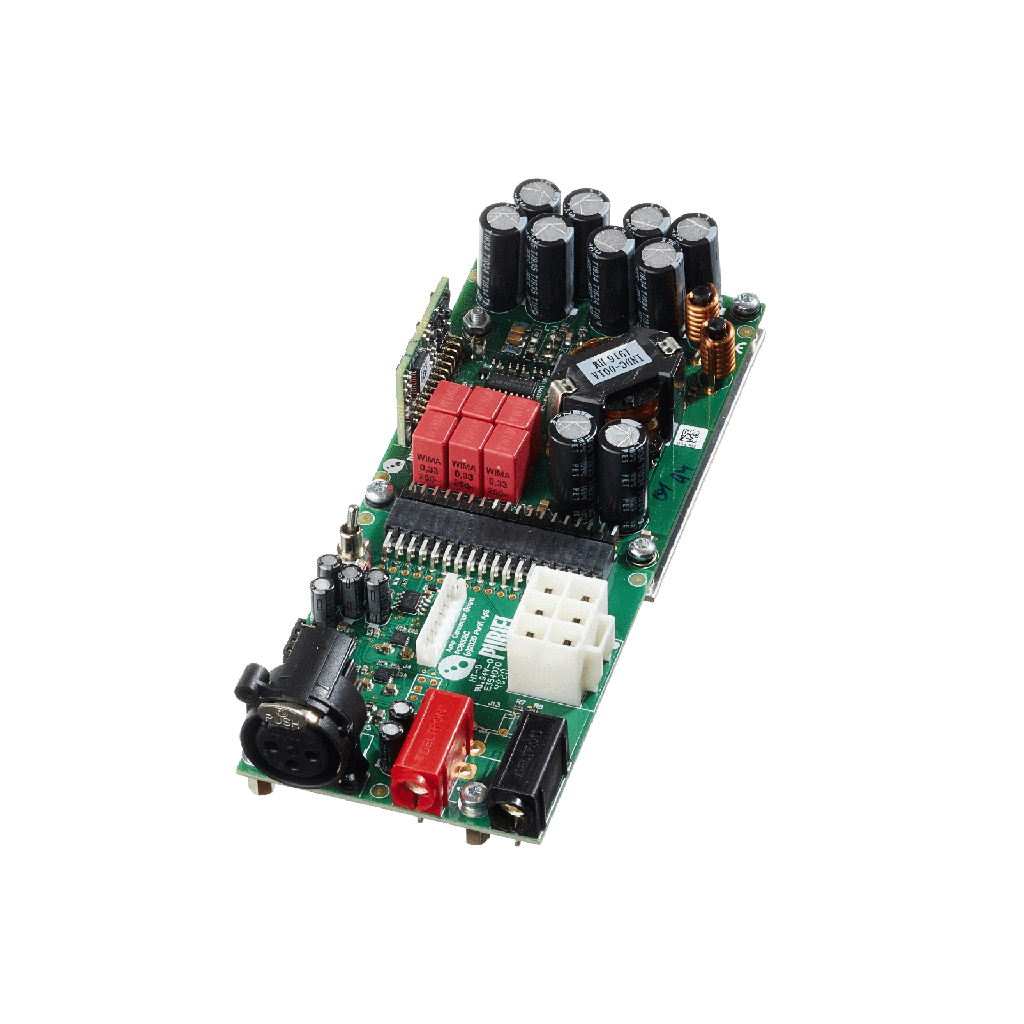

EVAL2 is an evaluation kit consisting of one amplifier module (1ET400A) and a mono front-end board (FE03). EVAL2 is also very suitable for integration in DIY constructions.
The front-end FE03 is designed for easy testing of the 1ET400A and provide all connectivity and control required to operate the amplifier modules:

  • Balanced analog input connector (XLR),
  • banana-plug speaker connectors,
  • toggle switch for enabling/disabling operation,
  • connecters for power supply,
  • voltage regulators for OPAMPs,
  • Pre-gain stage w/ bypass option (jumpers),
  • status LED’s,
  • various pin headers for accessing e.g, I2C and status information.

Refer to the 1ET400A Product Brief and Data Sheet for all specifications.
It is recommended to mount EVAL2 on a heatsink, e.g., an adequately design aluminum chassis.

NOTE: 1ET400A has very low idle losses and high overall efficiency, however, adequate cooling is still essential for sustained power delivery. Careful considerations must be given to design of the thermal system in order to achieve desired system-level output power specifications. Given proper cooling the 1ET400A amplifier module can easily be capable of very high continuous power delivery and the module is specifically designed with the utmost robustness and reliability as fundamental properties. Most frequently it is the system power supply that becomes the limiting factor in a application incorporating the 1ET400A module(s).

Specifications

Channels 1
Amplifier Configuration Single Ended
Analog Inputs Balanced (XLR)
Speaker Outputs Banana-plug & Solder point
Output Power by-pass / +13dB (front-end only). ~14dB / ~27dB (front-end + amp)
Supply Voltage ±25V to ±65V (VP) 15V (VDR) ±15V (VUNREG)
Length 167mm
Width 53mm
Height 35mm
Weight 195g
