EVAL1 Stereo 1ET400A Evaluation Kit

https://purifi-audio.com/web/image/product.template/1610/image_1920?unique=a67cf46

DKK 4,775.00 4775.0 DKK DKK 4,775.00 VAT Excluded

DKK 4,775.00 VAT Excluded

Not Available For Sale

  • Channels
  • Amplifier Configuration
  • Analog Inputs
  • Speaker Outputs
  • Output Power
  • Supply Voltage
  • Length
  • Width
  • Height
  • Weight

This combination does not exist.

Downloads

User Guide     Application Note     Data Sheet ​ 3D-Model


Description

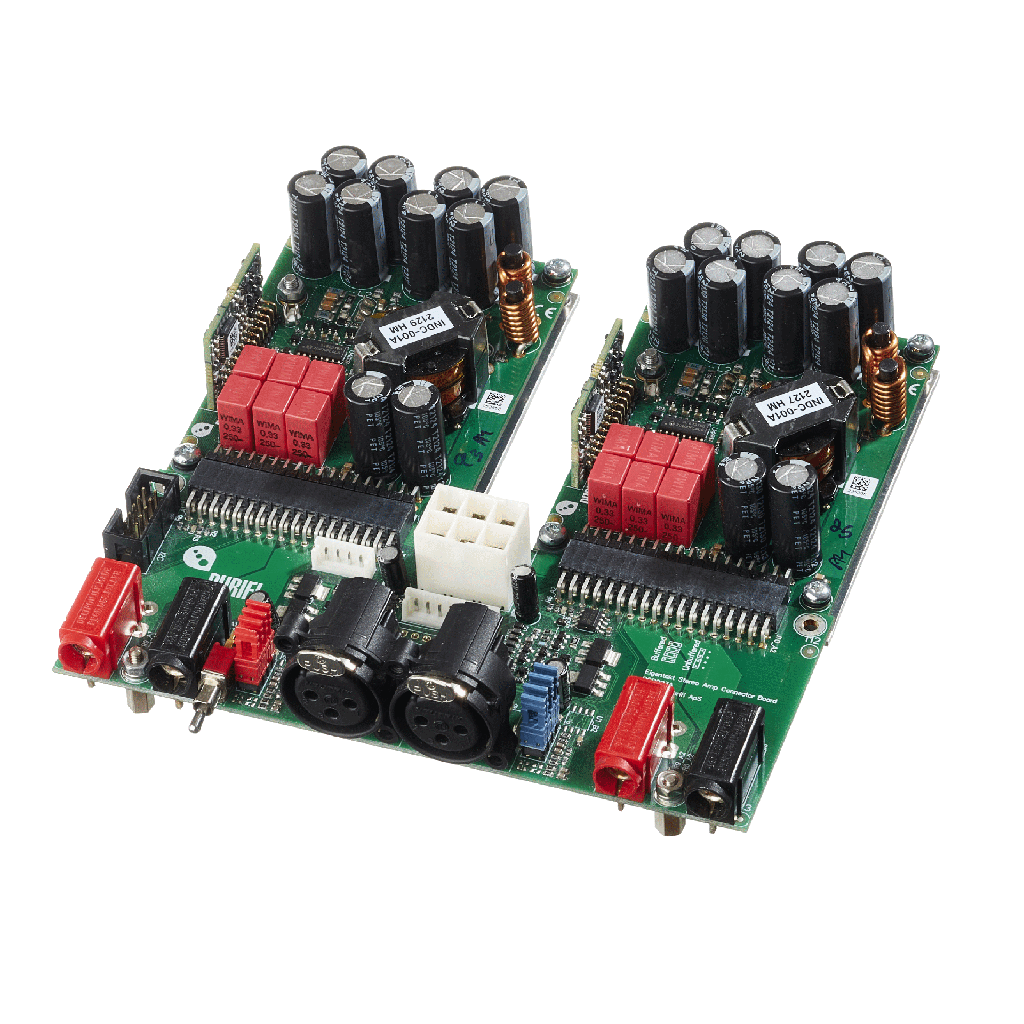

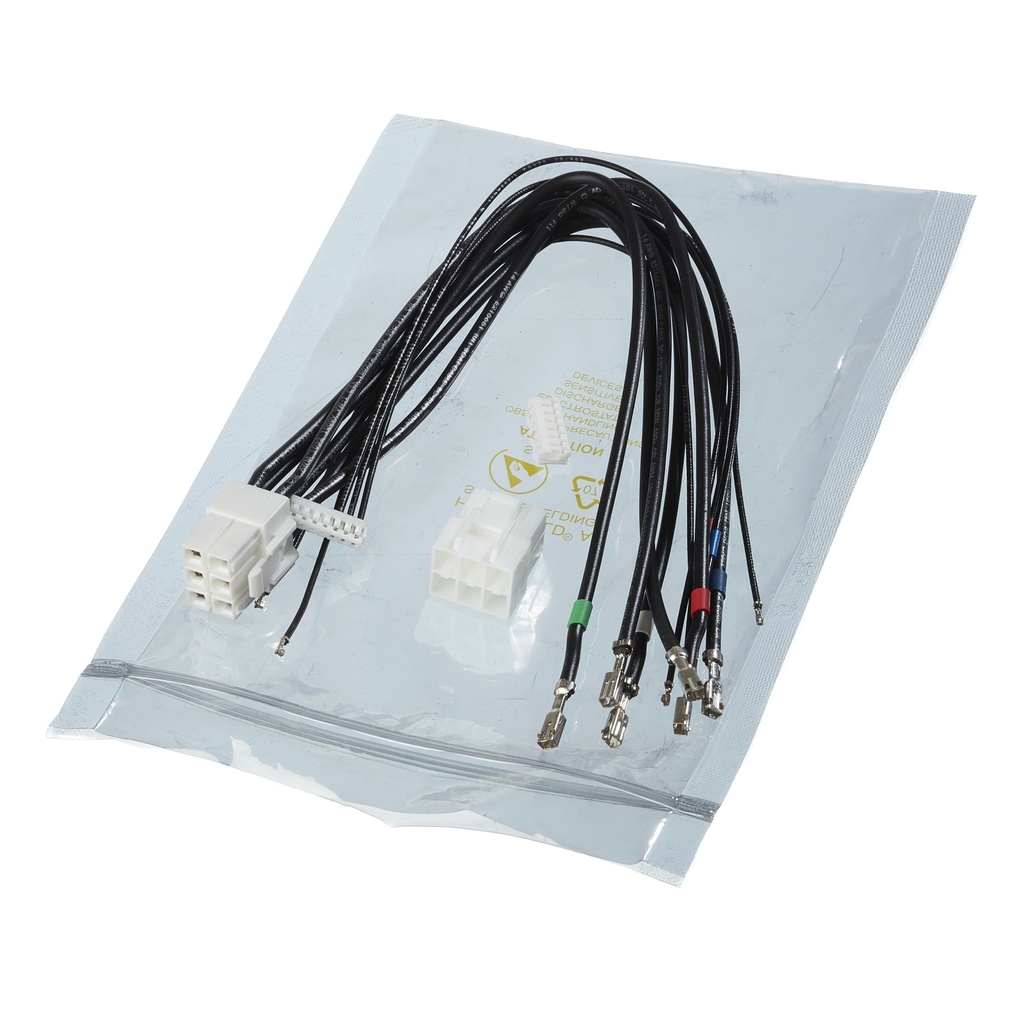

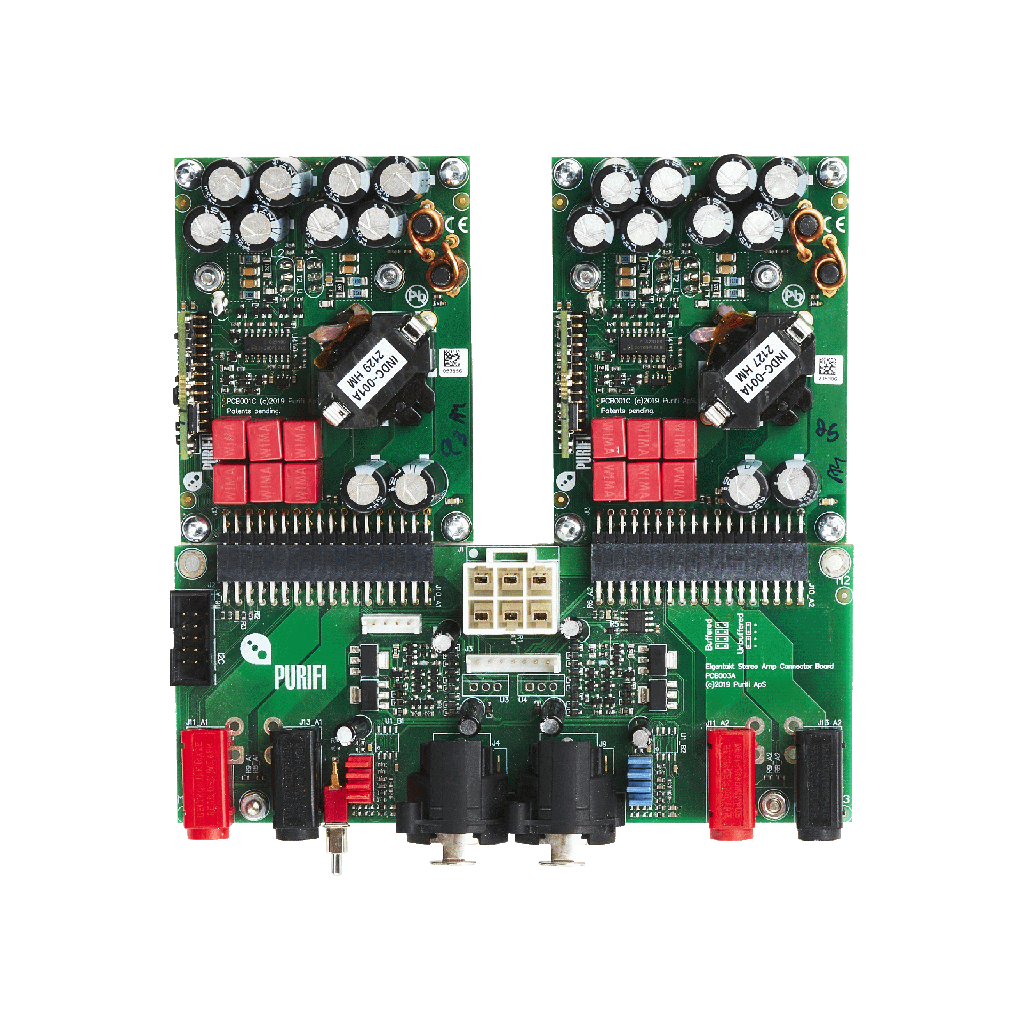

EVAL1 is an evaluation kit consisting of two 1ET400A amplifier modules, a stereo front-end board FE02 and a Cable set.
EVAL1 is very suitable for integration in DIY constructions.
The front-end FE02A is designed for easy testing of the 1ET400A and provide all connectivity and control required to operate the amplifier modules:

  • Balanced analog inputs connectors (XLR),
  • banana-plug speaker connectors,
  • toggle switch for enabling/disabling operation,
  • connecters for a (shared) power supply,
  • voltage regulators for OPAMPs,
  • Pre-gain stage w/ bypass option (jumpers),
  • status LED’s,
  • various pin headers for accessing e.g, I2C and status information.

Refer to the 1ET400A Product Brief and Data Sheet for all specifications.
It is recommended to mount EVAL1 on a heatsink, e.g., an adequately design aluminum chassis.

NOTE: 1ET400A has very low idle losses and high overall efficiency, however, adequate cooling is still essential for sustained power delivery. Careful considerations must be given to design of the thermal system in order to achieve desired system-level output power specifications. Given proper cooling the 1ET400A amplifier module can easily be capable of very high continuous power delivery and the module is specifically designed with the utmost robustness and reliability as fundamental properties. Most frequently it is the system power supply that becomes the limiting factor in a application incorporating the 1ET400A module(s).

Specifications

Channels 2
Amplifier Configuration Single Ended
Analog Inputs Balanced (XLR)
Speaker Outputs Banana-plug & Solder point
Output Power 425W @ 1% THD, 4Ω
Supply Voltage ±25V to ±65V (VP) 15V (VDR) ±18V (VUNREG)
Length 146mm
Width 142mm
Height 39mm
Weight 373g
