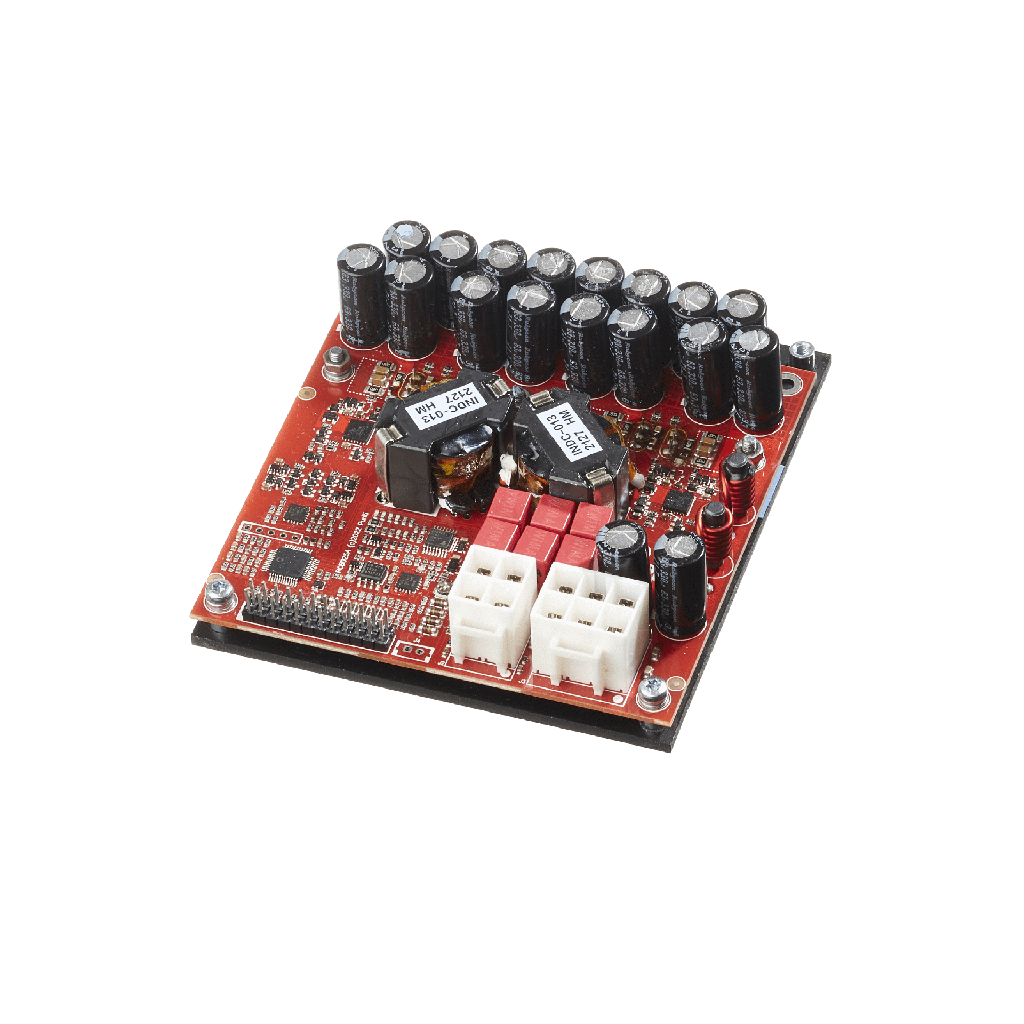

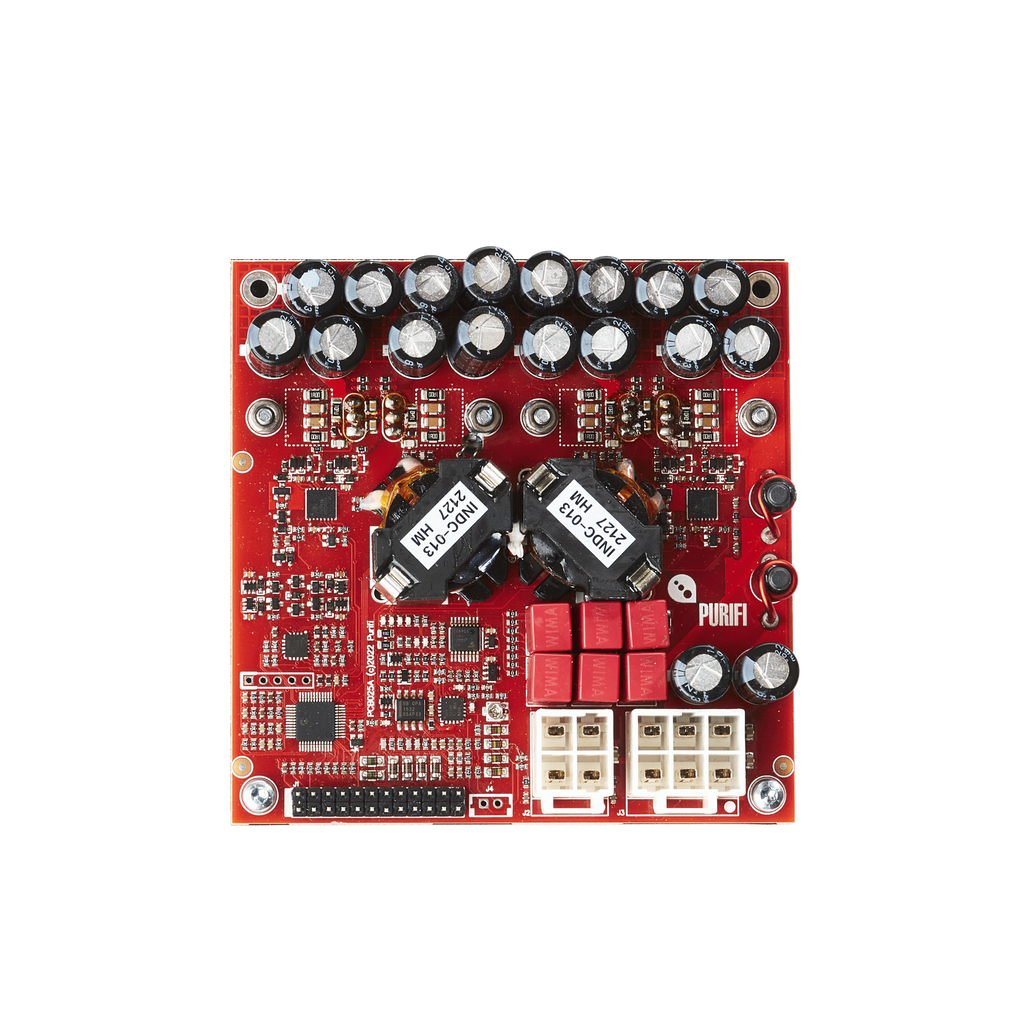

1ET9040BA Amplifier Module

https://purifi-audio.com/web/image/product.template/2004/image_1920?unique=69149e1

DKK 4,445.00 4445.0 DKK DKK 4,445.00 VAT Excluded

DKK 4,445.00 VAT Excluded

Not Available For Sale

  • Channels
  • Amplifier Configuration
  • Output Power
  • Output Current
  • THD+N
  • Dynamic Range
  • Output Noise
  • Gain
  • Output Impedance
  • Efficiency
  • Idle Losses
  • Supply Voltage
  • Length
  • Width
  • Height
  • Weight

This combination does not exist.

Downloads

Data Sheet   3D-Model


Description

Presenting the 1ET9040BA, a cutting-edge 2nd Generation EIGENTAKT amplifier module that redefines audio performance, surpassing all existing technologies.

The 1ET9040BA boasts a Bridge-tied-load (BTL) power stage, providing an impressive 90V voltage swing and a robust 40A output current through its speaker terminal. This design empowers the amplifier with a remarkable output power capability extending well into the kilowatt range, all while maintaining negligible distortion, ultra-low noise, and high efficiency. Experience audio excellence like never before with the unmatched capabilities of the 1ET9040BA.




Specifications

Channels 1
Amplifier Configuration Bridged Output Stage (BTL)
Output Power 750W @ 0.1% THD, 4Ω
Output Current 40A
THD+N <0.00006% @ 100W, 4Ω, 1kHz
Dynamic Range >140dB(A)
Output Noise 4.5µV(A)
Gain 14.4dB
Output Impedance <25µΩ @ 1kHz
Efficiency >96%
Idle Losses ~3W
Supply Voltage ±30V to ±48V DC
Length 100mm
Width 100mm
Height 35mm
Weight 280g
